Designed to bring out the best in television, movies, gaming and concerts. Pair with Sonance DSP Amplifiers for custom-tuned performance.Read More
4th generation coaxial midrange and tweeter for accurate imaging and crystal-clear dialog
Individual crossover networks for accurate, detailed sound
Integrated enclosure for amazing performance and reduced disturbance into adjoining rooms
Designed to fit into a standard wall or ceiling cavity (R1 and R2 fit into standard stud bay when installed vertically)
Any Reference model can be mixed and matched to achieve optimal sound in any room layout
Matches grille aesthetic of Sonance Visual Performance Series
Limited Lifetime Warranty (5 years on Reference grilles) valid on Reference Series products purchased from an authorized Sonance dealer or distributor

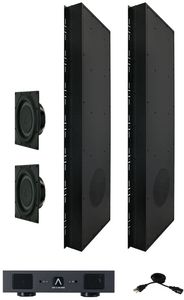

2x R10SUB, 2x R10SUB Enclosures, 1x DSP 2-150 MKIII
General Specs | |
| Color | Black |
| Series | Reference |
| Color/Finish Name | Black |
| Manufacturer Warranty | 5 Year Parts & Labor |
| Sensitivity | 88 |
R10SUB Enclosure Specs | |
| Material | MDF wood box with long strand fiberglass acoustic dampening material |
| Compatibility | Fits the VP10SUB NC only |
| Enclosure Dimensions (WxHxD) | 14.25” x 47.25” x 3.4375” |
| Mounting Depth | 3.375” (85.7mm) |
| Mounting Bracket Width | 16.25” |
| Hardware | Integrated L-bracket mounting system included |
DSP AMPLIFIER Specs | |
| Number of Channels | 2 (1 stereo pair) |
| RMS per Channel @ 8 Ohms | 150 watts (2 channels driven) |
| RMS per Channel @ 4 Ohms | 224 watts (2 channels driven) |
| RMS per Channel Bridged @ 8 Ohms | 473 watts |
| Frequency Response | 5Hz-50kHz, bandwidth limited |
| Distortion (1kHz) @ 8 Ohms | 0.07% |
| Distortion (1kHz) @ 4 Ohms | 0.06% |
| AC Voltage | 100-120V@60Hz, 220-240V@50Hz |
| AC Fuse | 5A (T5-AL) |
| Dimensions + Feet (WxHxD) | 8.625” x 2.125” x 16.8125” (219mm x 54mm x 427mm) |
| Dimensions + Rack Ears, No Feet (WxHxD) | 19” x 1.75” x 16.8125” (482mm x 44mm x 427mm) |
R10SUB Subwoofer Specs | |
| Woofer | 10” (254mm) laminated carbon fiber cone with a rubber surround |
| Frequency Response | 30Hz - 250Hz +/-3dB |
| Impedance | 8 Ohms nominal |
| Sensitivity | 88dB (2.83V/1) meter |
| Grille Material | Perforated steel |
| Dimensions (WxHxD) | 10.4375” x 10.4375” x 3.156” (265mm x 265mm x 80.2mm) |
