Product Dimensions 5"h x 15.5"w x 17"d

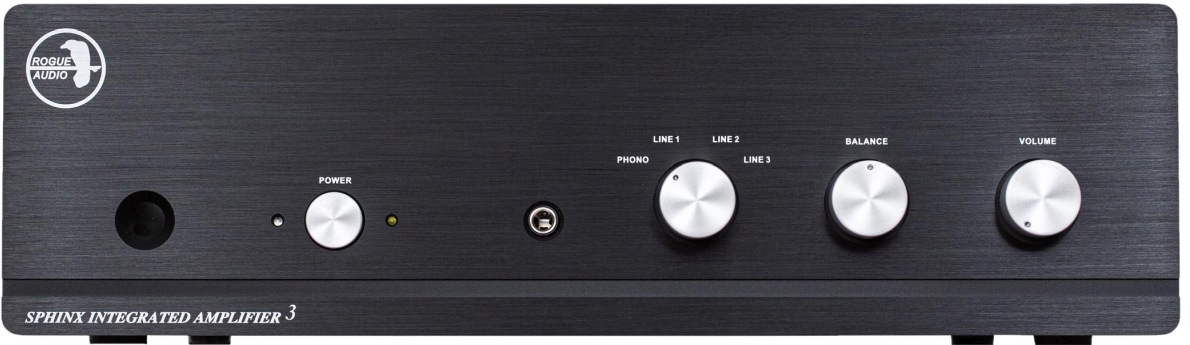

Dynamic, transparent, and profoundly musical, the Rogue Sphinx v3 sets a new standard in affordable integrated amplifiers. Utilizing sophisticated circuitry borrowed from our most advanced designs, the Sphinx is able to outperform separates costing far more than this single box design.Read More
100 WPC/8 ohms
Pure tube mu-follower preamplifier
Slow start turn on sequencing
Green design; extremely low power consumption
Standby 6W, 1/2 power 132W, full power 250W
Damping factor > 1000
Discrete MOSFET headphone amplifier
44/60 dB phono for MM/MC cartridges
Custom 375 VA toroidal transformer
Massive high storage linear power supply
Matched 12AU7 preamplifier tubes
Gold plated RCA inputs
Gold plated binding posts
Machined aluminum faceplate
4 inputs (phono, line 1,2,3)
Active outputs for subwoofer or biamping
Alps volume potentiometer
All precision components
Heavy (2 ounce) copper circuit board
Metal remote volume control (optional)
Fully tested, burned-in, and auditioned
Detachable IEC power cord
Entirely designed and hand built in the USA - 3 year limited warranty (6 months on tubes)
General Specs | |
Depth (in.) | 17 |
Height (in.) | 5 |
Width (in.) | 15.5 |
Channels | 4 |
Frequency Response | 20Hz - 20KHz |
Manufacturer Warranty | 3 Year Limited |
Color Finish Name | Black |
Product Weight (lbs.) | 25 |
Color | Black |
Voltage | 120/240 |
Frequency | 50/60 |
Amplifier Channels | 4 |
