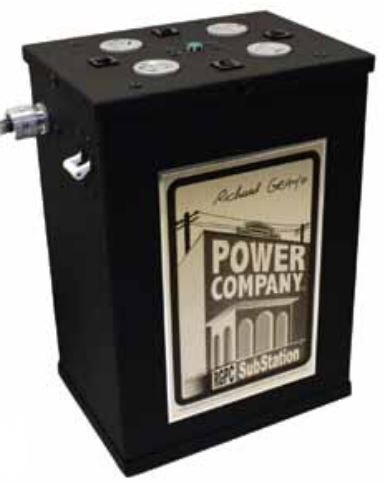

Richard Gray's Power Company AC Power Purification

Richard Gray's Power Company

Model #:

Substation

At a Glance

Product Dimensions 9.25"h x 13"w x 6.62"d

Richard Gray's Power Company AC Power Purification with compact design and resettable circuit breakerRead More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

Richard Gray's Power Company AC Power Purification Offers:

  • AV Grade Magnetic Isolation and Shielding
  • Preprogrammed all mode let through overvoltage protection
  • All Mode Balanced AC Surge Protection
  • Balanced Power Delivery
  • Resettable Circuit Breaker
  • Compact design
  • Compatible with UL1449 3rd edition for Type 2 and 3 locations

SubStation 240/120

  • Dimensions (WHD) 13 x 9.25 x 6.62 inches
  • Net weight 55 lbs
  • Mounting Stand alone Floor / Shelf
  • Power Cord 7.5 ft, 12 AWG, NEMA 6-20P
  • Outlets 4 (NEMA 5-20R)
  • Input Voltage 240 VAC
  • Output Voltage 120 VAC
  • Frequency 60 HZ
  • Output Power 16 A (1,920 Watts)
  • Technology AV Grd. Magnetics <7000 AVM Factor
  • Purification Let Through Performance < 12 Volts NM, <1 Volt CM
  • AC Surge Protection (type 2 and 3) Balanced
  • Efficiency >97%
  • Cooling Convectional
  • Indicator Light Blue LED
  • Storage Temperature -40° C to 85° C
  • Operating Temperature -40° C to 65° C

SubStation 120/120

  • Dimensions (WHD) 13 x 9.25 x 6.62 inches
  • Net weight 55 lbs
  • Mounting Stand alone Floor / Shelf
  • Power Cord 7.5 ft, 12 AWG, NEMA-5-15P
  • Outlets 4 NEMA 5-20R
  • Input Voltage 120 VAC
  • Output Voltage 120 VAC
  • Frequency 60 HZ
  • Output Power 12 A (1,440 Watts)
  • Technology AV Grd. Magnetics <7000 AVM Factor
  • Purification Let Through Performance < 12 Volts NM, <1 Volt CM
  • AC Surge Protection (type 2 and 3) Balanced
  • Efficiency >97%
  • Cooling Convectional
  • Indicator Light Blue LED
  • Storage Temperature -40° C to 85° C
  • Operating Temperature -40° C to 65° C
Useful Documents
Specification Sheet
Specifications

General Specs

Product Weight (lbs.)55
Depth (in.)6.62
Width (in.)13
Height (in.)9.25
Number Of Outlets4
