Leon® Detail Series 3" Ultra-Thin On-Wall Surround Speaker
At a Glance
Leon’s on-wall rear channel surround speakers are handcrafted from solid 1” MDF. With two models available, as thin as only 2” deep, they provide an excellent alternative to in-wall speakers, allowing for easy installation, better stereo imaging, and enhanced sonic clarity.
Proposition 65 Warning for California Residents
Connections
| Connector Type | Spring-Loaded Terminals |
|---|
Construction
| Tweeter Composition | Silk Dome |
|---|
Specifications
| Speaker Output Power | 104 dB |
|---|---|
| Sensitivity | 86dB @ 2.83V/1m |
General Specs
| RMS Power Handling (Watts) | 125 |
|---|---|
| Impedance | 6 ohms |
| Maximum Power Handling (Watts) | 125W |
| Speaker Type | Surround Speakers |
| Depth (in.) | 2.25 |
| Height (in.) | 13 |
| Width (in.) | 5 |
| Woofer Size | 3" |
Leon® Detail Series 3" Ultra-Thin On-Wall Surround Speaker
Model #: Ds33UX
Call for Best Price
At a Glance
Get to know this product.
Leon’s on-wall rear channel surround speakers are handcrafted from solid 1” MDF. With two models available, as thin as only 2” deep, they provide an excellent alternative to in-wall speakers, allowing for easy installation, better stereo imaging, and enhanced sonic clarity. The Detail Ds33 and Ds33UX surrounds perfectly complement the Horizon Hz33 and Profile Pr33 Series speakers.
Sonically-matched rear surrounds complement Horizon Hz33, Hz33UX, Profile 33 & Profile Pr33UX Series speakers
Can be built to any dimension to fit into custom cabinetry or niche
Sleek designs, as thin as 2” deep, allows for unobtrusive on-wall installation
Can be custom painted or built with beautiful hardwood cabinets
Available with Leon’s exclusive FlexMount™ articulating bracket for perfect stereo imaging
Solid MDF construction, handcrafted in the USA
Specifications
Material: MDF enclosure
Finish: Black, white or any custom finish
Grill: Standard woven fabric
Connections: Spring-loaded terminals
Components: 3″ ultra-thin woofers; 1″ silk-dome tweeters
Impedance: 6Ω
Recommended Power: 25-125W
Max. Output: 98dB avg, 104dB peak
Coverage: Vert: 110°, Hor: 140°
Frequency Response: 120–20kHz
Sensitivity: 86dB @ 2.83V/1m
Mounting: DsFMB, FLSH, DsTTS
Dimensions
Depth without grill: 2”
Weight: 15-30 lbs.

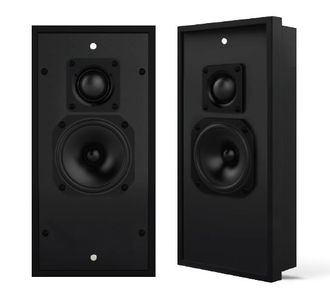

*Image available shown with both Ds33 and Ds33UX speakers; both are sold separately.
