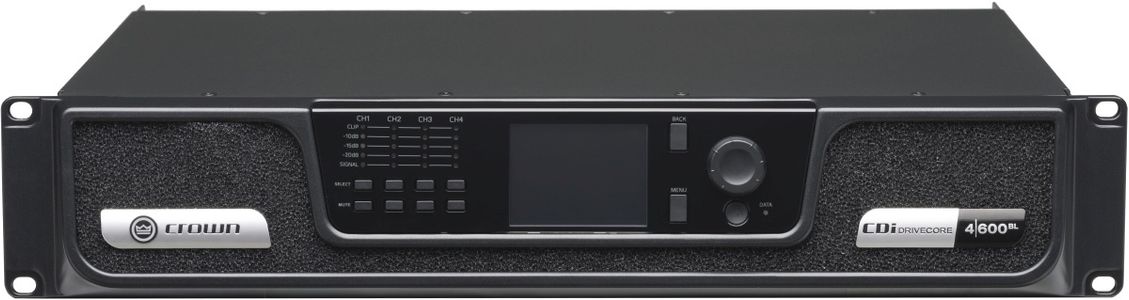

Crown® Audio CDi DriveCore 4|600BL 4 Channel Analog + BLU Link Input Amplifier

Crown Audio

Model #:

GCDI4x600BL-U-US

Model #: GCDI4x600BL-U-US
532164
Crown Audio
$99,999.00

At a Glance

Product Dimensions 3.5"h x 19"w x 12.25"d

Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|600BL offers streamlined functionality to work in almost any medium sized installation such as cinema, houses of worship, bars, lounges, and more.Read More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|600BL offers streamlined functionality to work in almost any medium sized installation such as cinema, houses of worship, bars, lounges, and more. Designed for ease-of-use in a variety of applications, the 4|600BL is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The 4|600BL also comes with BLU link, adding the ability to send and receive channels over HARMAN’s digital audio BUS. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.

4-channel amp that includes network control/monitoring

High-level DSP

Front-panel interface

Support for driving up to 100Vrms speaker loads without requiring a transformer

BLU link adds the ability to send and receive channels over HARMAN’s digital audio BUS

Useful Documents
Comparison Chart
Operation Manual
Power Draw and Thermal Sheet
Cutsheet
Specifications

General Specs

Depth (in.)12.25
Height (in.)3.5
Impedance20 kOhms balanced, 10 kOhms unblanced
Width (in.)19
Frequency Response+/-0.25dB(8Ohms, 20 Hz - 20 kHz)
Channels4
Color Finish NameBlack
Product Weight (lbs.)16.3
CollectionCDi DriveCore
ColorBlack

General

BLU linkYes
Channels4
Sensitivity (for full rated power at 8 ohms)0.7V RMS
Rated Power Output (per channel @ 4 ohms)600W
Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms)> 104dB
THD (full rated power, 20 Hz - 20 kHz)0.35%
Damping Factor (20 Hz to 100 Hz)> 1000
Frequency Response (8Ω, 20 Hz - 20 kHz)+/-0.25dB
Crosstalk (below rated power) 20 Hz to 1 kHz> 80dB
Input Impedance (nominally balanced, nominally unbalanced)20 kΩ balanced, 10 kΩ unbalanced
Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion)19 x 3.5 x 12.25
Weight16.3 lbs (7.39 kg)
Power Supply Connector15A IEC connector, 100 – 240V
WarningProposition 65 Warning for California Residents
