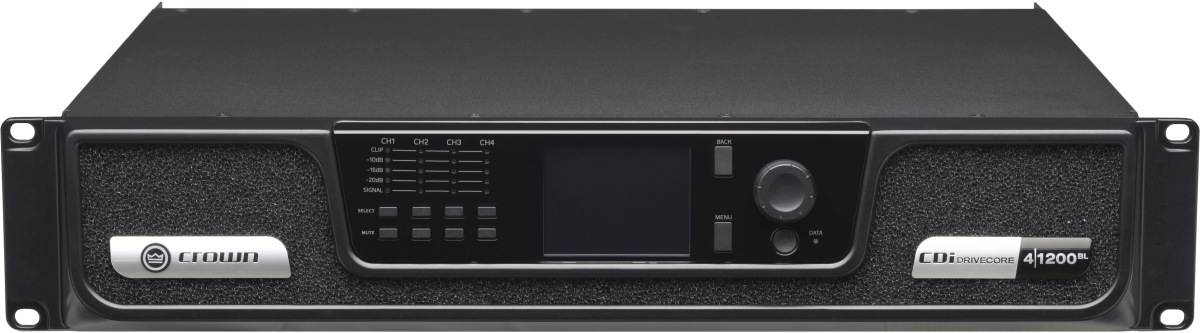

    Crown® Audio CDi DriveCore 4|1200BL 4 Channel Analog + BLU Link Input Amplifier

    Crown Audio

    Model #:

    GCDI4x12BL-U-US

    Model #: GCDI4x12BL-U-US
    532061
    Crown Audio
    $99,999.00

    At a Glance

    Product Dimensions 3.5"h x 19"w x 14.71"d

    Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|1200BL offers streamlined functionality to work in almost any large sized installation such as cinema, houses of worship, hotels, cruise lines, and more.Read More

    Call for Best Price

    Get to know this product.

    Product Overview

    Product Overview

    The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|1200 offers streamlined functionality to work in almost any large sized installation such as cinema, houses of worship, hotels, cruise lines, and more. Designed for ease-of-use in a variety of applications, the 4|1200 is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.

    4-channel amp that includes network control/monitoring

    High-level DSP

    Front-panel interface

    Support for driving up to 100Vrms speaker loads without requiring a transformer

    BLU link adds the ability to send and receive channels over HARMAN’s digital audio BUS

    Useful Documents
    Comparison Chart
    Operation Manual
    Power Draw and Thermal Sheet
    Cutsheet
    Specifications

    General Specs

    Depth (in.)14.71
    Height (in.)3.5
    Impedance20 kOhm balanced, 10 kOhm unblanced
    Width (in.)19
    Frequency Response+/-0.25dB(8O, 20 Hz - 20 kHz)
    Channels4
    Color Finish NameBlack
    Product Weight (lbs.)20.1
    CollectionCDi DriveCore
    ColorBlack

    General

    BLU linkYes
    Channels4
    Sensitivity (for full rated power at 8 ohms)0.7V RMS
    Rated Power Output (per channel @ 4 ohms)1200W
    Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms)> 104dB
    THD (full rated power, 20 Hz - 20 kHz)0.35%
    Damping Factor (20 Hz to 100 Hz)> 1000
    Frequency Response (8Ω, 20 Hz - 20 kHz)+/-0.25dB
    Crosstalk (below rated power) 20 Hz to 1 kHz> 80dB
    Input Impedance (nominally balanced, nominally unbalanced)20 kΩ balanced, 10 kΩ unbalanced
    Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion)19 x 3.5 x 14.71
    Weight20.1 lbs (9.12 kg)
    Power Supply Connector20A IEC connector, 100 – 240V
