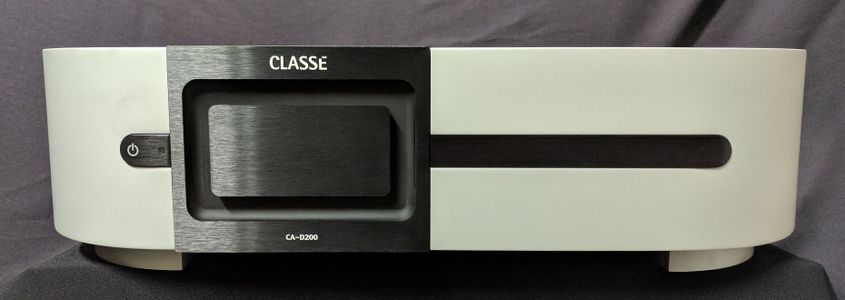

Manufacturer's summary: "The CA-D200 is the first Classé amplifier to employ switching power supply and amplifier topologies. These complex technologies are challenging and beyond the reach of most high-end audio designers, but they offer enormous potential for exceptional performance along with the practical benefits of smaller size and greater efficiency. In short, they promise amazing value. Some years ago we recognized the potential along with these obvious benefits and began expanding the Classé Design team to include specialists in switching power supplies and amplifiers. The CA-D200 is not a re-boxed class D amplifier from one of the small number of industry suppliers, differentiated primarily by its chassis and brand logo, but rather a ground-up Classé design that highlights the accomplishments of a team of highly qualified designers who, combined, bring well over fifty years of experience in these fields to the CA-D200 project. The CA-D200 employs proprietary component parts and DSP technology along with sound engineering practice to optimize its sonic performance at a relatively affordable price of admission for a Classé Delta series amplifier. Compare it to anything even close to its price and you may well determine that digital amplification by Classé is the right choice for all the right reasons."
Frequency response: 10 Hz - 20 kHz, -1 dB into 4Ω
Output power: 200W/Ch rms into 8Ω (14.5dBW) 400W/Ch rms into 4Ω (14.5dBW)
Harmonic distortion: <0.018% @ 1kHz Balanced Input
Peak Voltage: 116V peak to peak, 58V rms no load 116V peak to peak, 58V rms into 4Ω
Input impedance: 100kΩ Balanced / 50kΩ SE
Voltage gain: 29 dB
Input level at clipping: 1.4V rms Balanced/SE
Intermodulation distortion: >80 dB below fundamental into 8Ω Balanced
Signal-to-Noise Ratio: -100 dB at peak output into 8Ω Measured Bandwidth 20 kHz
Mains Voltage: 90-264V, 50/60 Hz
Dimensions (excluding connectors): Width 17.5” (445mm) Depth 16.5” (419mm) Height 4.78” (121mm)
Useful product information: https://classeaudio.com/pdfs/Brochures/CA-D200-Brochure-3-5-14.pdf
