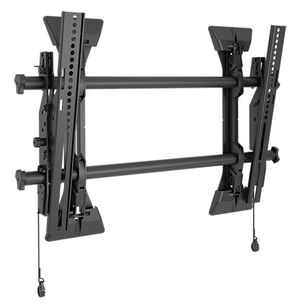

Chief's Fusion tilt wall mounts were developed based on installer feedback and direct observations of installers in the field. Favorite Fusion features include Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
Benefits included increased stability, fast installation, easy cable management and security.
The installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
|Certifications||UL Listed, OSHPD Approved|
|Lateral Shift||12.9" (327 mm)|
|Manual Height Adjustment||1" (25 mm)|
|Minimum Depth||2" (51 mm)|
|Mounting Pattern Compatibility (Universal Versions)||100 x 100 mm - 650 x 400 mm|
|Number Of Monitors||1|
|Overall Dimensions (H x W x D)||17 x 25.75 x 2" (432 x 654 x 51 mm)|
|Shipping Weight||19.31 lbs (8.76 kg)|
|Typical Screen Sizes||32 - 65"|
|Wall Stud Compatibility In||16" - 24" (406 mm - 610 mm)|
|Weight Capacity||125 lbs (56.7 kg)|
|Product Weight (lbs.)||19.31|
|TV Size's up to (in.)||47|
|Weight Capacity (lbs.)||125|
