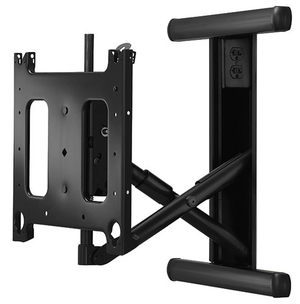

Chief® Professional AV Solutions Black Large Low Profile In Wall Swing Arm Mount
Model #: PIWRF2000B
At a Glance
Create a low-profile installation when mounting a flat screen display with articulation.
Proposition 65 Warning for California Residents
Misc. Specs
| Product Weight (lbs.) | 52.25 |
|---|---|
| Tilt | Yes |
| Depth (in.) | 5.5 |
| Width (in.) | 20.4 |
| Height (in.) | 22.8 |
| TV Size's up to (in.) | 71 |
| Weight Capacity (lbs.) | 200 |
| Mounting Location | Wall |
General
| Color | Black |
|---|---|
| Lateral Shift | 5" (127.mm) |
| Manual Height Adjustment | 1" (25 mm) |
| Maximum Extension | 15" (381 mm) |
| Minimum Depth | 1.7" (43.2 mm) |
| Mounting Pattern Compatibility (Universal Versions) | 200 x 200mm - 862 x 517mm |
| Notes | Depth and Extension do not include interface bracket (adds 0.5 - 1.5") |
| Pivot Numerical Value | +/- 40.3°(depending on screen width) |
| Post-Installation Leveling Roll | Yes |
| Shipping Weight | 52.25 lbs (23.7 kg) |
| Solution Type | Universal |
| Tilt | + 2° , - 15° |
| Typical Screen Sizes | 42 - 71" |
| Wall Stud Compatibility In | 16" (406 mm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Orientation | Landscape, Portrait |
Chief® Professional AV Solutions Black Large Low Profile In Wall Swing Arm Mount
Model #: PIWRF2000B
Call for Best Price
At a Glance
Create a low-profile installation when mounting a flat screen display with articulation.
People also viewed:
Chief® Kontour™ Black K4 2x1 Slat-Wall Mounted Focal Depth Adjustable Array
Model #: K4S210BCall for Best Price
Chief® Kontour™ Black K4 2x1 Wall Mounted Focal Depth Adjustable Array
Model #: K4W210BCall for Best Price
Chief® Professional AV Solutions Medium Flat Panel Swing Arm Wall Mount-Black
Model #: MWRSKUBCall for Best Price
Get to know this product.
Key Features
Limitless centering on the wall between 16" center studs without cutting studs
Low profile design ensures the mount remains concealed behind the flat panel
Centris Technology uses the center of gravity to achieve smooth, fingertip tilt
ClickConnect Technology provides an audible click to confirm the flat panel is locked in place
Easy connect/disconnect with no tools needed
Screen can be installed in portrait or landscape orientation ( PAC400 accessory can be used to rotate without removing the screen)
Integrated cable management
