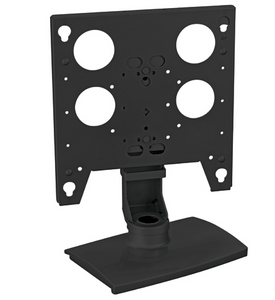

Product Dimensions 20.7"h x 16.3"w x 9.3"d
Provides a wide variety of features for most tabletop installations of large flat panel TVs.Read More
Stylish solution for residential, commercial and business applications
View/download base stand template by clicking on the CAD drawing in the downloads tab
Smooth swivel with optional stops
Exclusive ClickConnect mounting system provides simplified tool-less latching with an audible click
Free standing with bolt down capability for permanent installations or security
Infinite height adjustment of 5" (127 mm) to allow for different screen heights up to 32" (81.28 cm)
Two cable management options for ease of installation
Smooth finger-tip swivel up to 45° in either direction with optional stops at 15°, 25° and 35°
PSSUB universal version available which includes universal PSBUB interface. PSS2000B is available but must order PSS2000B and PSBXXXX custom or universal interface separately.
General Specs | |
| Depth (in.) | 9.3 |
| Width (in.) | 16.3 |
| Height (in.) | 20.7 |
| TV Size's up to (in.) | 50 |
| Weight Capacity (lbs.) | 150 |
General | |
| Color | Black |
| Manual Height Adjustment | 6.5" (165 mm) |
| Mounting Method | Free Standing and Bolt-down |
| Mounting Pattern Compatibility (Universal Versions) | 200 x 200mm - 862 x 517mm |
| Pivot Numerical Value | Yes, up to 45° in either direction with optional stops at 15°, 25° and 35° |
| Post-Installation Leveling Roll | Yes |
| Shipping Weight | 36 lbs (16.33 kg) |
| Solution Type | Universal, Custom |
| TV Height Range | 15 - 32" (381 - 813mm) |
| Typical Screen Sizes | 32 - 50" |
| Weight Capacity | 150 lbs (68 kg) |
| Orientation | Landscape |
