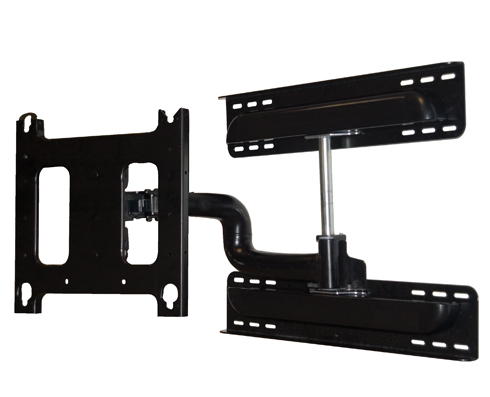

Chief® Manufacturing Black Large Flat Panel Swing Arm Wall Mount

Model #: PWRSKUB

At a Glance

The PWRSK safely integrates swing arm mounting technology into steel stud installations.

WarningProposition 65 Warning for California Residents
Chief® Manufacturing Black Large Flat Panel Swing Arm Wall Mount

Misc. Specs

TiltYes
Depth (in.)3.5
Width (in.)27.0
Height (in.)21.2
TV Size's up to (in.)55
Weight Capacity (lbs.)100
Mounting LocationWall

General

ColorBlack
Lateral Shift12" (304.8mm)
Maximum Screen Thickness25" (635 mm)
Minimum Depth3.38" (85.9mm)
Mounting Pattern Compatibility (Universal Versions)200 x 200mm - 862 x 517mm
NotesDepth and Extension do not include interface bracket (adds 0.5 - 1.5")
Overall Dimensions (H x W x D)21.2" x 27.0" x 3.5" (538 x 686 x 89mm)
Post-Installation Leveling RollYes
Shipping Weight62 lbs (28.12 kg)
Solution TypeUniversal
Tilt+ 5° , - 15°
Typical Screen Sizes32 - 65"
Wall Stud Compatibility InMetal Studs,16, 24
Weight Capacity100 lbs (45.4 kg)
OrientationLandscape, Portrait

Chief® Manufacturing Black Large Flat Panel Swing Arm Wall Mount

Model #: PWRSKUB
Call for Best Price

At a Glance

The PWRSK safely integrates swing arm mounting technology into steel stud installations.

People also viewed:

Get to know this product.

Fully assembled PWR arm with steel stud wall extensions

Q-Latch Mounting System secures the flat panel to the mount with a latching flag

All mounting hardware included

Mounts to 16"/20"/24" on-center steel stud systems

Centris fingertip tilt control

Integrated cable management for a clean installation

Extends 25" from the wall for maximum viewing flexibility

Useful Documents
Specifications

General

ColorBlack
Lateral Shift12" (304.8mm)
Maximum Screen Thickness25" (635 mm)
Minimum Depth3.38" (85.9mm)
Mounting Pattern Compatibility (Universal Versions)200 x 200mm - 862 x 517mm
NotesDepth and Extension do not include interface bracket (adds 0.5 - 1.5")
Overall Dimensions (H x W x D)21.2" x 27.0" x 3.5" (538 x 686 x 89mm)
Post-Installation Leveling RollYes
Shipping Weight62 lbs (28.12 kg)
Solution TypeUniversal
Tilt+ 5° , - 15°
Typical Screen Sizes32 - 65"
Wall Stud Compatibility InMetal Studs,16, 24
Weight Capacity100 lbs (45.4 kg)
OrientationLandscape, Portrait

Misc. Specs

TiltYes
Depth (in.)3.5
Width (in.)27.0
Height (in.)21.2
TV Size's up to (in.)55
Weight Capacity (lbs.)100
Mounting LocationWall
