Product Dimensions 80.5"h x 72.5"w x 40.4"d

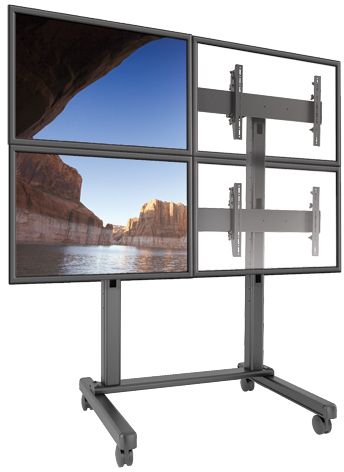

Chief's FUSION cart freestanding solution makes it possible to construct video walls in prominent locations for temporary applications.Read More
Screen array configuration: 2 screens wide x 2 screens high.
Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.
2 x 2 screen arrangement for 42 - 50" screens. Larger displays possible with FCAX brackets, use MountFinder to confirm compatibility
Easily align displays with independent height, plumb and lateral shift adjustment
Smooth rolling casters for effortless positioning (1 locking caster per leg)
Integrated cable management for a clean installation
Available leveling feet (FCA776) for more permanent installations
TAA Compliant
General Specs | |
| Depth (in.) | 40.4 |
| Width (in.) | 72.5 |
| Height (in.) | 80.5 |
| TV Size's up to (in.) | 50 |
General | |
| Center of Display to Floor Table Range | 24" (609.6 mm) (minimum bottom row) - 72" (1829 mm) (maximum top row) |
| Certifications | UL Listed, TAA Compliant |
| Color | Black |
| Lateral Shift | Yes |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Mounting Pattern Compatibility (Universal Versions) | Any width x 100 mm - 400 mm |
| Number Of Monitors | 4 |
| Overall Dimensions (H x W x D) | 80.5" x 72.5" x 40.4" (2045 x 1842 x 1026 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Screen Array Configuration | 2 x 2 |
| Shipping Weight | 219 lbs (99.34 kg) |
| Solution Type | Universal |
| Typical Screen Sizes | 42" - 50" (Larger displays possible with FCAX brackets, use MountFinder to confirm compatibility) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Orientation | Landscape |
