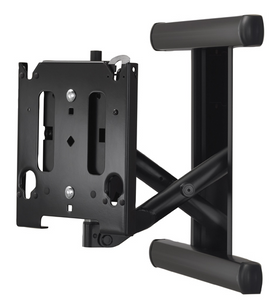

    Chief® Black Manufacturing Medium Low-Profile In-Wall Swing Arm Mount

    Model #: MIWRF6000B

    At a Glance

    The MIWRF brings in-wall swing arm technology to the next level, creating a low profile installation for any flat panel display.

    WarningProposition 65 Warning for California Residents
    Chief® Black Manufacturing Medium Low-Profile In-Wall Swing Arm Mount

    General Specs

    TiltYes
    Depth (in.)5.6
    Width (in.)20.3
    Height (in.)17.2
    TV Size's up to (in.)55
    Weight Capacity (lbs.)125
    Mounting LocationWall

    General

    ColorBlack
    Lateral Shift5" (127.mm)
    Manual Height Adjustment1" (25 mm)
    Maximum Extension10" (254 mm)
    Minimum Depth1.7" (43.2 mm)
    Mounting Pattern Compatibility (Universal Versions)100 x 100mm - 709 x 431mm
    NotesDepth and Extension do not include interface bracket (adds 0.5 - 1.5")
    Pivot Numerical Value+/- 37.5° (depending on screen width)
    Post-Installation Leveling RollYes
    Shipping Weight40.7 lbs (18.46 kg)
    Solution TypeUniversal
    Tilt+ 2° , - 15°
    Typical Screen Sizes30 - 55"
    Wall Stud Compatibility In16" (406 mm)
    Weight Capacity125 lbs (56.7 kg)
    OrientationLandscape, Portrait

    Chief® Black Manufacturing Medium Low-Profile In-Wall Swing Arm Mount

    Model #: MIWRF6000B
    99020
    Model #: MIWRF6000B
    Chief
    $99,999.00

    Call for Best Price

    At a Glance

    The MIWRF brings in-wall swing arm technology to the next level, creating a low profile installation for any flat panel display.

    Get to know this product.

    Key Features

    Provides limitless centering of the flat panel on the wall between 16" center studs without cutting studs - no header/footer necessary

    Low-profile design hides the mount behind the display

    Centris Technology provides smooth, fingertip tilt

    Provides post-installation height adjustment

    ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place

    Screen can be installed in portrait or landscape orientation ( MAC400 accessory can be used to rotate without removing the screen)

    Integrated cable management

    Ships as complete in-wall swing arm - zero assembly required

    Get perfect TV centering without cutting studs

    Ultra low-profile mounting solution

    Specifications

    General Specs

    TiltYes
    Depth (in.)5.6
    Width (in.)20.3
    Height (in.)17.2
    TV Size's up to (in.)55
    Weight Capacity (lbs.)125
    Mounting LocationWall

    General

    ColorBlack
    Lateral Shift5" (127.mm)
    Manual Height Adjustment1" (25 mm)
    Maximum Extension10" (254 mm)
    Minimum Depth1.7" (43.2 mm)
    Mounting Pattern Compatibility (Universal Versions)100 x 100mm - 709 x 431mm
    NotesDepth and Extension do not include interface bracket (adds 0.5 - 1.5")
    Pivot Numerical Value+/- 37.5° (depending on screen width)
    Post-Installation Leveling RollYes
    Shipping Weight40.7 lbs (18.46 kg)
    Solution TypeUniversal
    Tilt+ 2° , - 15°
    Typical Screen Sizes30 - 55"
    Wall Stud Compatibility In16" (406 mm)
    Weight Capacity125 lbs (56.7 kg)
    OrientationLandscape, Portrait
